Rumah ProdukRol Track BawahDAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material

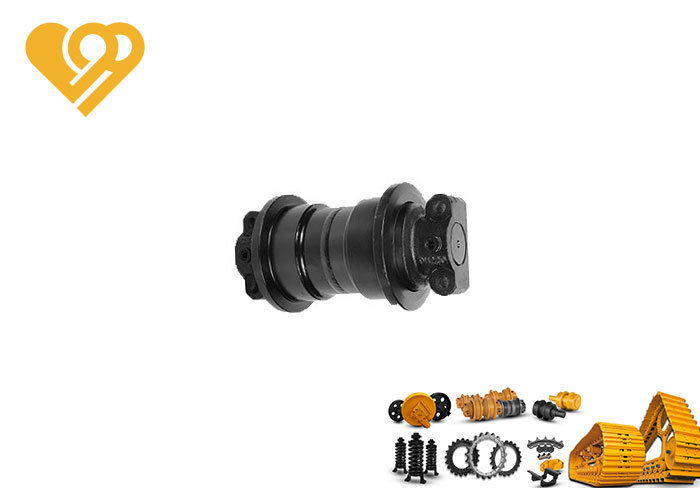

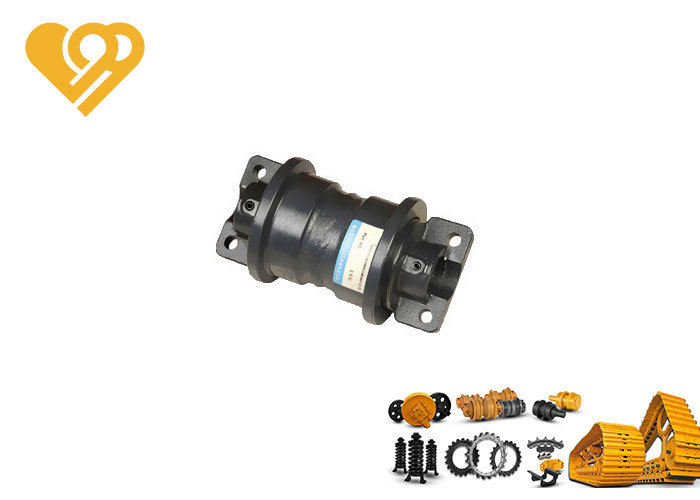

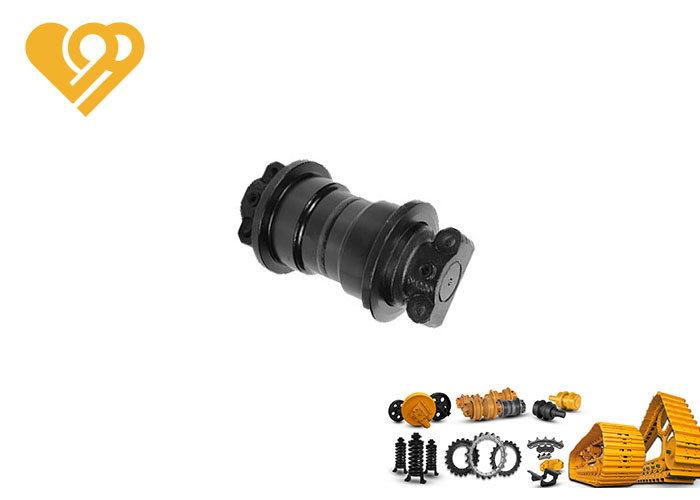

DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material

DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material

Detail produk:
Tempat asal: Cina (Daratan)
Nama merek: YT
Nomor model: DH55 DH130 DH220
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: negotiable
Kemasan rincian: Kemasan Ekspor
Waktu pengiriman: 7-30 hari
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 10000 PC/bulan
Hubungi sekarang

Informasi Detail
Bahan: 40mn2、40mnb 、 50mn Teknik: Forging/Casting
Warna: Kuning atau Hitam atau Pelanggan Diperlukan Pengiriman: Dengan udara, kapal dan ekspres
Kekerasan Permukaan: HRC52-58 Sertifikasi: ISO9001: 2000
Berat: Opsional Kedalaman kekerasan: 8-12mm
Menyoroti:

Surface Hardness HRC52-58 Excavator Track Roller

,

Hardness Depth 8-12mm Bottom Track Roller

,

40Mn2/40MnB/50Mn Undercarriage Roller

Deskripsi Produk

Earthmoving Excavator Undercarriage Spare Parts DAEWOO DH55 DH130 DH220 Bottom Track Roller
About Track Rollers
The roller is a critical component of belt conveyors, supporting both the conveyor belt and material weight. Accounting for 35% of total conveyor cost and generating over 70% of system resistance, roller quality significantly impacts performance.
Material & Construction
  • Materials: 40Mn2, 40MnB, or 50Mn steel selected based on working conditions
  • Precision forging with normalization before heat treatment
  • Surface hardness HRC52-60 with hardened layer depth of 7-10mm (HRC45)
  • High-quality floating seals and lubrication system for -45℃ to 120℃ operation
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material 0
Key Features
  • Quench-tempering process for superior mechanical properties and wear resistance
  • Surface hardness HRC40-55 reduces wear and extends service life
  • Precision engineered components with lifetime sealing system
  • Forged shells resist bell mouthing deformation
Installation Dimensions
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material 1
Brand Model A B E G M L
DAEWOO DH55 130 110 130 251 218 15.5
DH130 160 135 184 285 250 17.5
DH220 185 150 220 356 320 18
DH300 205 168 262 412 368 22
Note: Additional models available upon request. Contact us with your specific requirements.
Performance Advantages
  • Suitable for 3-50 ton excavators and special machinery
  • Double conical sealing with lifelong lubrication design
  • Hot-forged shells with superior internal material structure
  • Advanced heat treatment for crack resistance
DAEWOO DH55 DH130 DH220 Excavator Track Roller with Surface Hardness HRC52-58 Hardness Depth 8-12mm and 40Mn2/40MnB/50Mn Material 2
Our Manufacturing Advantages
  • World-class quality standards
  • Factory-direct pricing
  • 35 years of specialized experience
  • Flexible payment options (T/T, L/C)
  • 30-day delivery guarantee
  • Professional technical support and logistics guidance
  • Comprehensive after-sales service including 24/7 support
